Project Overview
- Service Type
- SB 721 Inspection · Structural Repair · Waterproofing
- Location
- Hayward, CA (Jackson Triangle)
- Property Type
- Apartment building — 18 units, 2 storeys (built 1979)
- Timeline
- 1-day inspection · 9 working days repair
- Completed
- February 2026
Project at a Glance
The Problem
The building has nine upper-floor balconies, one elevated walkway and two stairways — twelve elements across eighteen units. The owner expected a routine result: the wood was in good condition, nothing sagged, and a probe went nowhere on any member we tested.

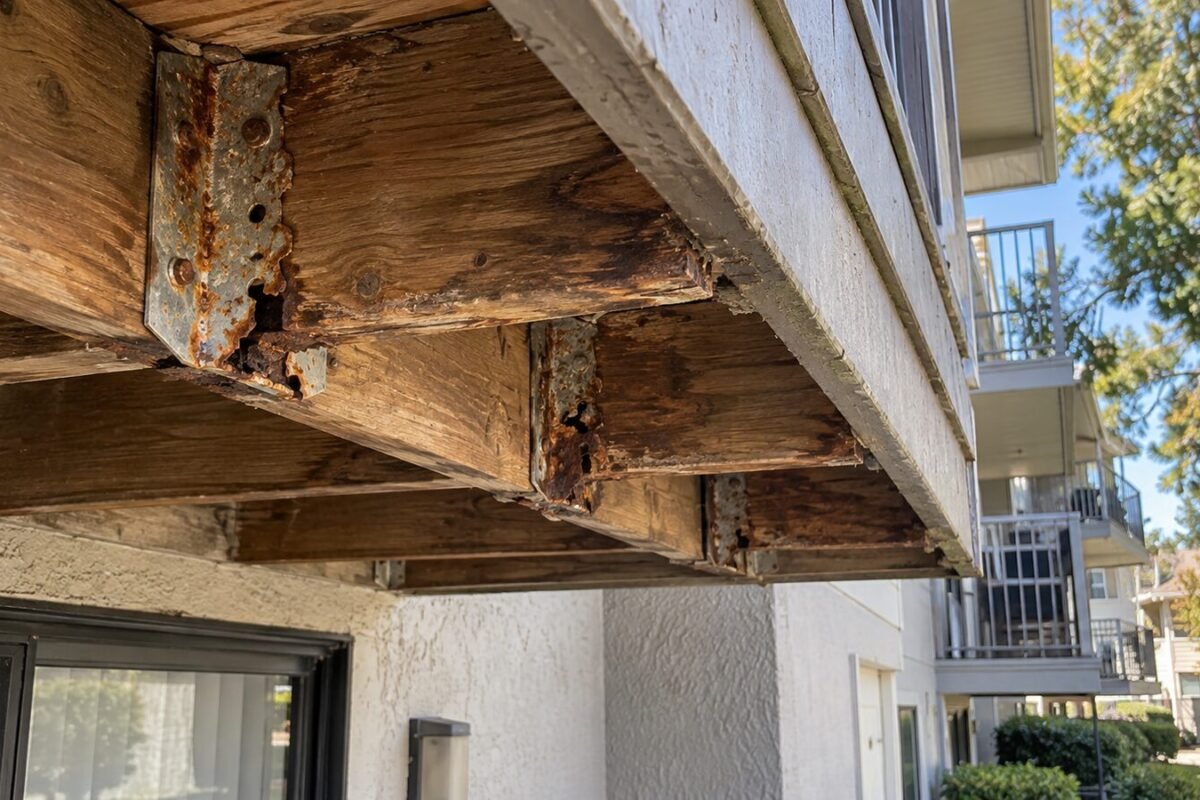

The failure was in the metal. Hayward sits close enough to the bay that salt-laden air reaches the framing cavity, and at some point in this building's history somebody had replaced hardware with fasteners that were not rated for treated lumber. Modern pressure-treated wood is significantly more corrosive to unrated steel than the older chemistry it replaced, and the two conditions together had eaten the joist hangers on six balconies from the inside out. We had seen the same exposure pattern a few miles north on an Oakland project.

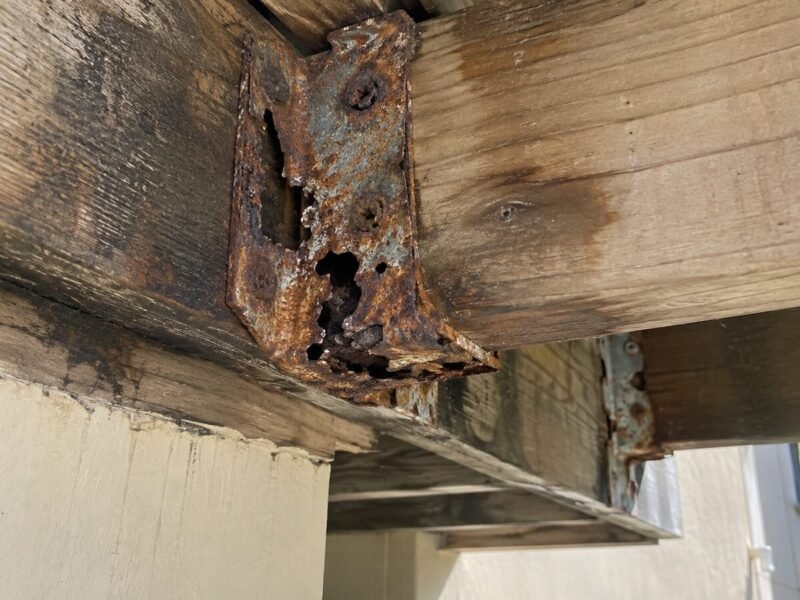

Two ledger connections had lost enough section that the hanger was carrying load on a fraction of its original steel. Nothing had moved yet, and nothing would have shown on the walking surface until it did. Under SB 721 — Health & Safety Code §17973 — this is precisely what the six-year cycle exists to catch; our SB 721 inspection service handled the survey, the report and the repair.
The Solution

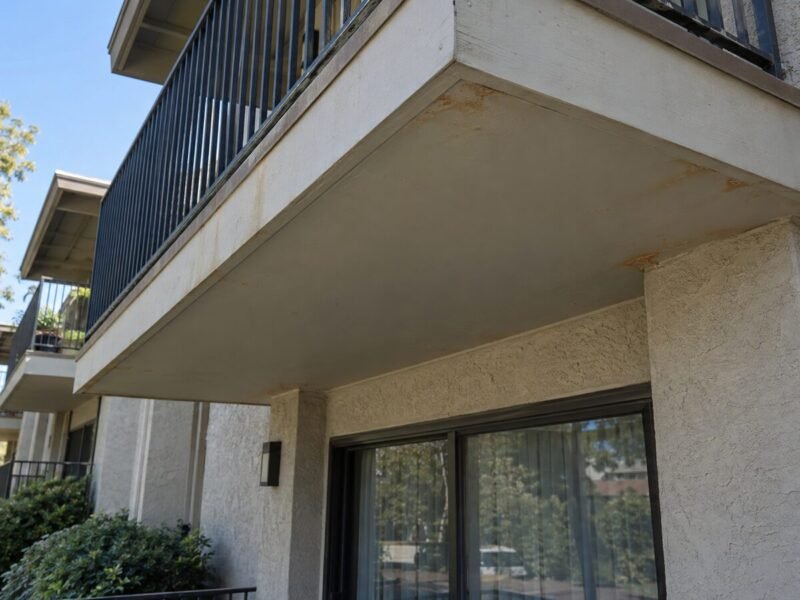

The tell was rust staining on the soffit — faint, and easy to read as cosmetic. Any balcony inspection that stops at the wood misses it, so we opened the soffit on all nine balconies rather than sampling, and photographed every connection.
Six balconies had their hangers, straps and fasteners replaced with hot-dip galvanized hardware rated for contact with treated lumber, and stainless where the connection sits in the exterior cavity. On the two worst, the ledger connection was rebuilt entirely with new blocking. Soffits went back with a vent detail so the cavity can dry, and the affected balconies were re-waterproofed at the perimeter.
- SB 721 inspection of all 12 elevated elements
- Soffit opened on all 9 balconies rather than sampled
- Photographic record of every joist hanger and strap
- Hardware replacement in hot-dip galvanized & stainless (6 balconies)
- Full ledger connection rebuild on 2 balconies
- Vented soffit reconstruction to give the cavity a drying path
- Perimeter re-waterproofing & written SB 721 report
How the Project Ran
-
Inspection (Day 1)
All twelve elements assessed; rust staining on the soffits prompted opening all nine balconies, with every connection photographed and rated.
-
Report & permits (Week 2)
Written report issued with condition ratings and the connection photographs; repair scope permitted through the City of Hayward.
-
Hardware replacement (Days 1–6 on site)
Hangers, straps and fasteners replaced on six balconies with hardware rated for treated lumber, and both compromised ledger connections rebuilt with new blocking.
-

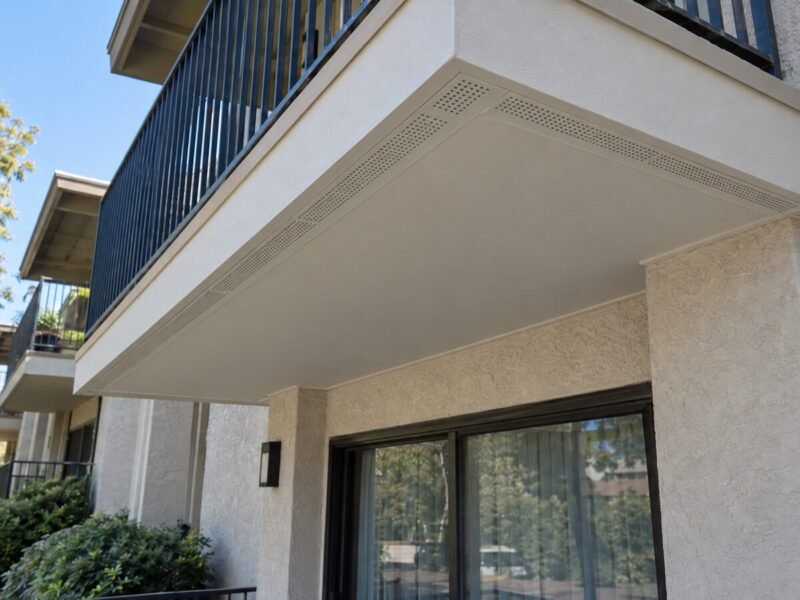

Soffits & closeout (Days 7–9)
Soffits rebuilt with a vent detail, perimeters re-waterproofed, and the SB 721 report placed on file for the six-year cycle.
Materials Used

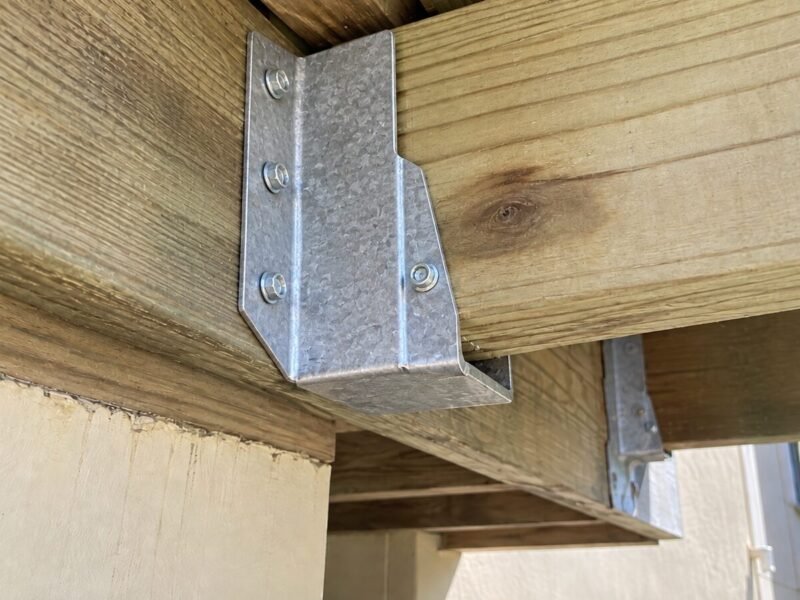

- Hot-dip galvanized connectors hangers and straps rated for contact with treated lumber
- Stainless steel fasteners connections sitting in the exterior cavity
- Pressure-treated Douglas fir blocking at the two rebuilt ledger connections
- Vented soffit board a drying path for the framing cavity
Before & After
Connections replaced on six balconies before any wood failed — the cheapest version of this repair.
I would have said the balconies were fine, and by the usual test they were. It was the metal. That is not something I would ever have thought to ask about.
Questions About This Project
Can a balcony fail with no rot in the wood?
Yes, and it is more common near the bay than most owners realise. Connectors carry the load path, and a hanger in a damp cavity can lose most of its section while the joist it supports stays sound. A probe test on wood tells you nothing about the steel holding it.
Why does treated lumber corrode hardware?
The copper-based preservatives used in modern pressure-treated wood are considerably more aggressive to steel than the older chemistry. Hardware in contact with it has to be rated for that — hot-dip galvanized to the correct standard, or stainless in exposed conditions. Fasteners salvaged from an earlier repair usually are not.
Is rust staining on a soffit serious?
It is worth opening up. Rust running out of a soffit means steel inside the assembly is corroding, and the only way to know how far it has gone is to look. On this building the staining was faint enough that three previous painters had covered it.
